Tower / Workstation
CS-W45
4U GPU Tower / Rack-Mountable Chassis
- Supports motherboard size up to ATX
- 2 x 2.5” HDD Bay (Internal)
- I/O depends on motherboard specification
- 1 x Full-Height/Half-Length expansion slot
| M/B Form Factor | Mini-ITX, Micro-ATX, ATX, E-ATX motherboard |
| Dimension (WxDxH) | 178 x 647 x 452 mm (7.0” x 25.5” x 17.8”) |
| Color | Black |
| Processor Support | Single and Dual Intel/AMD Processors |
| Drive Bay | External: 8 x 3.5” Swappable SAS/SATA Drive Tray
Internal: 3 x 5.25” Internal Drive Bay (90o Rotatable Drive Cage) |
| Backplane | 8-port 12Gbps SAS/SATA to 2-port Mini-SAS HD with SGPIO |
| Expansion Slot | 8 x Full-Height/Full-Length |

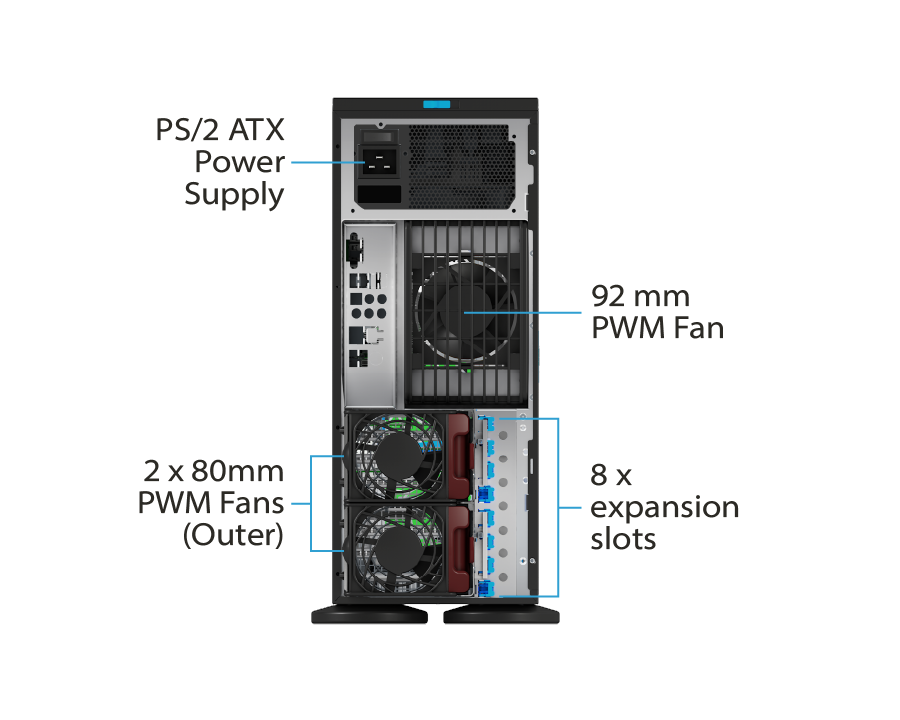

| System Cooling | 4 x 80mm Swappable PWM Fans (Middle)
1 x 92mm PWM Fans (Rear) 2 x 80mm PWM Fans (Outer) |

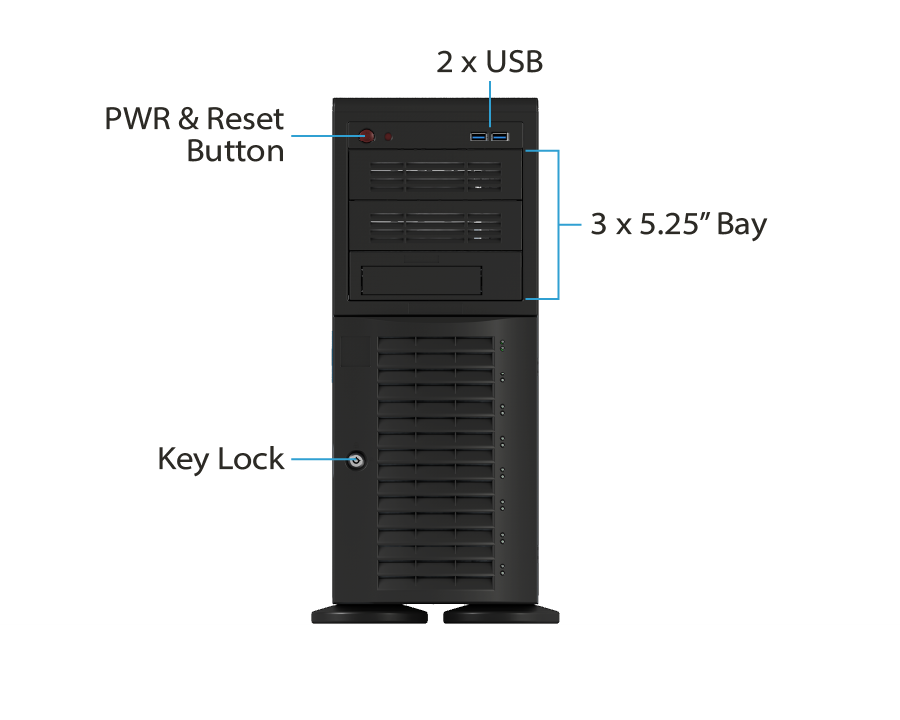

| Front Panel | 2 x USB 3.0 (Option: USB2.0)
1 x Power Button 1 x Reset Button 1 x Power LED 1 x HDD Activity LED 2 x Network LEDs 1 x Overheat LED 1 x System Fail LED |
| Security | Intrusion Switch, Front Door Key Lock |
| Power Supply | PS/2 ATX Power Supply (D190 x W150 x H86mm, option) |
| Weight | Net Weight 24.04kg (53lbs); Gross Weight 25.4Kg (56lbs) |
| Environment | Operating Temperature: 5o ~ 35oC (41o ~ 95oF)
Storage Temperature: -40o ~ 70ºC (-40o ~ 158ºF) Operating Humidity: 8% ~ 90% RH (non-condensing) Storage Humidity: 5% ~ 95% RH (non-condensing) |
| Category | Model No. | Description |
| HDD Tray | AC-H205 | 3.5" to 2.5" HDD Converter Tray |
| HDD Tray | AC-H307 | 3.5" HDD Tray with Easy Lock (Black button) |
| Backplane | AC-B431 | 8-port 12Gbps SAS/SATA to 2-port Mini-SAS HD with SGPIO |
| Backplane | Coming soon | 8-port 24Gbs SATA/SAS4/U.2/U.3 to 8-port NVMe/U.2/U.3 with SGPIO |
| Fan | AC-N92251 | 9225mm PWM fan, 2400 RPM, 40 CFM (Rear) |
| PSU | AC-PS1K21 | 1200W PS/2 ATX PSU |
| PSU | AC-PS8501 | 850W PS/2 ATX PSU, 80PLUS Gold (Brand: Liteon) |
| PSU | Coming soon | 3000W PS/2 ATX PSU |
| Slide Rail | AC-R57 | 4U Slide Rail, Think Type, 26.5"~36.4” , Ball Bearing, Toolless |
| Slide Rail | AC-R58 | 2~4U Slide Rail, Think Type, 19"~26.6” , Ball Bearing, Toolless |
| Slide Rail | AC-R59 | 4~5U Slide Rail, 26.5~36.4", Ball-Bearing, w/ Square to Round Hole Converter |
| Heatsink | - | Please refer Heatsink Product for more option |
