タワー / ワークステーション
CS-G47A
4U GPU タワー / ラックマウント型シャーシ
- タワー型とラックマウント型をサポート
- E-ATXおよび独自の15.2インチ x 13.2インチマザーボードをサポート
- 8 x 3.5インチ交換可能SAS/SATA HDDトレイ
- 3 x ダブル幅 GPU ソリューションに最適化された 7 x フルハイト/フルレングス拡張スロット
- ATX PS/2電源をサポート
| Model | CS-G47A |
| M/B Form Factor | Proprietary motherboard up to 15.2” X 13.2”,
EE-ATX, E-ATX, ATX, Micro-ATX, Mini-ATX |

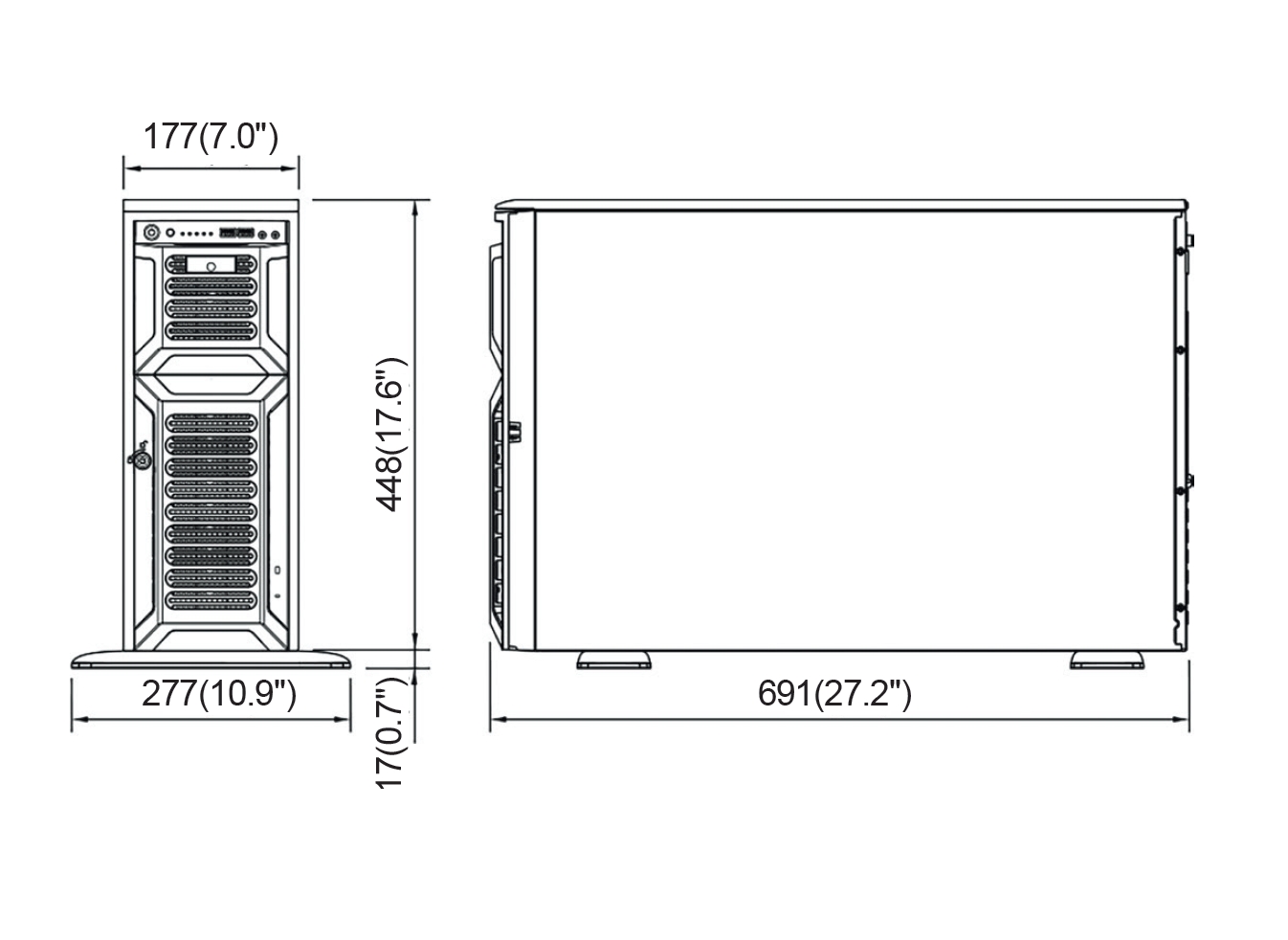

| Dimensions (W x D x H) | 177 x 691 x 465 mm (7.0” x 27.2” x 18.4”) |
| Color | Black C |
| Processor Support | Single and Dual Intel/AMD Processors |

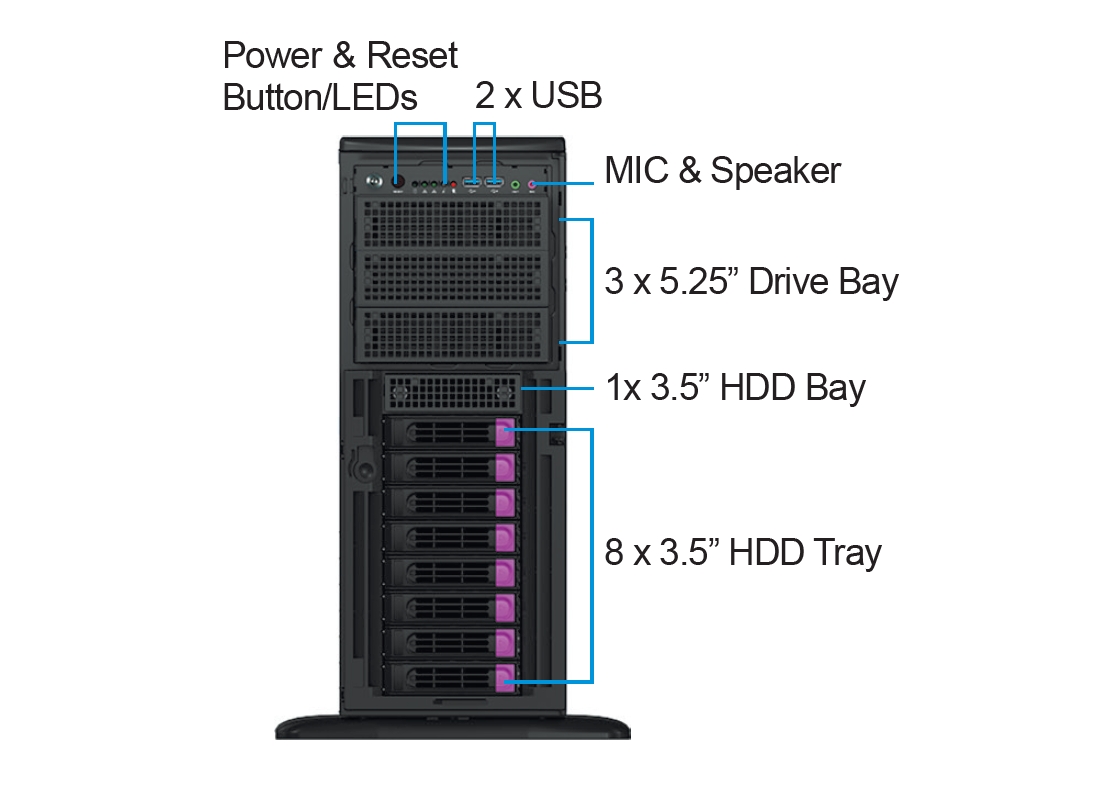

| Drive Bay | 8 x 3.5” Swappable HDD Trays
3 x 5.25” Drive Bays(90° Rotatable Drive Cage) 1 x 3.5” Internal HDD Bay |
| Peripheral Bay | N/A |
| HDD Backplane | 8-port 12 Gbps SAS/ SATA to 2-port Mini-SAS HD |

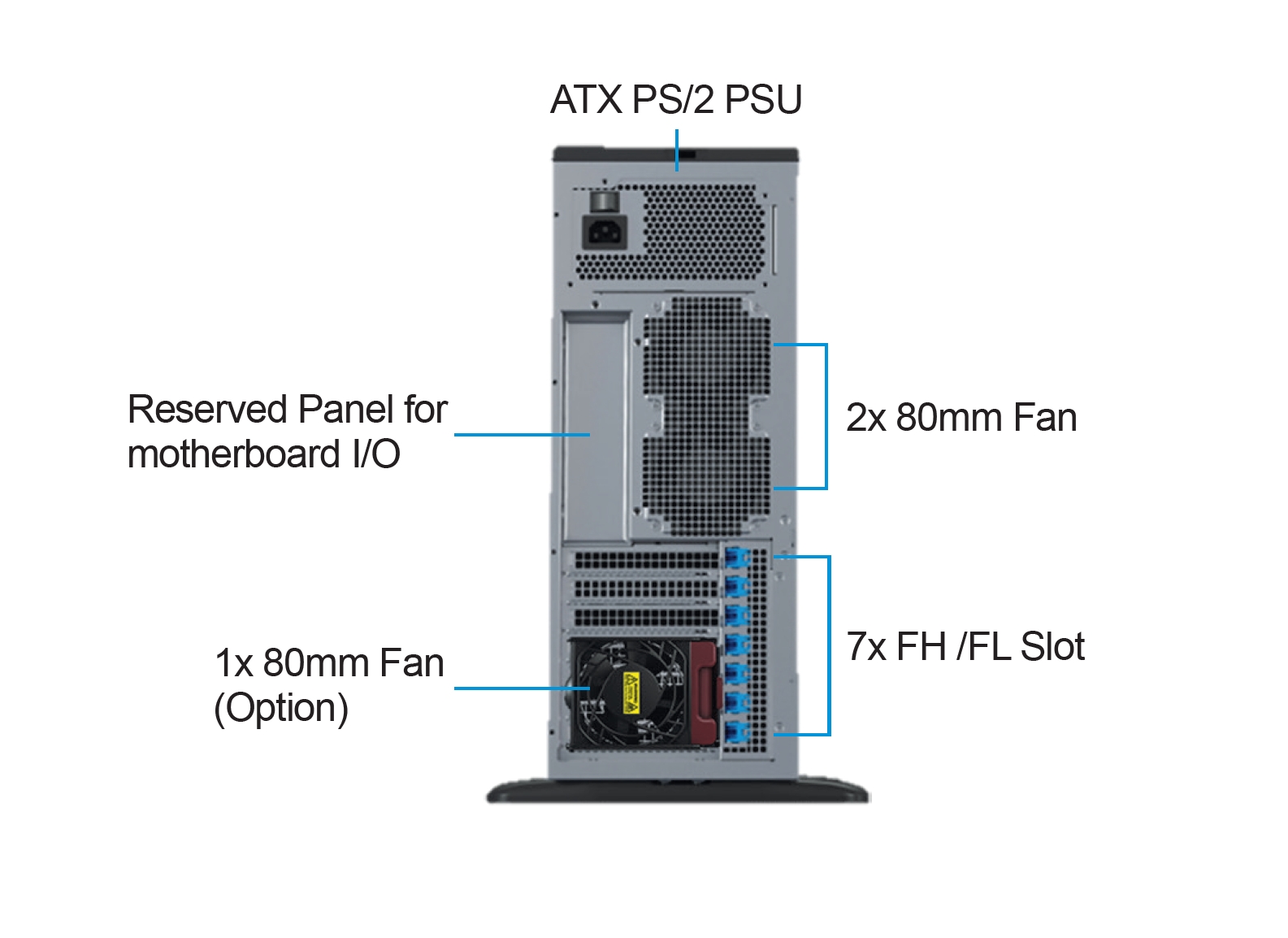

| Expansion Slot | 7 x Full-Height/ Full-Length |

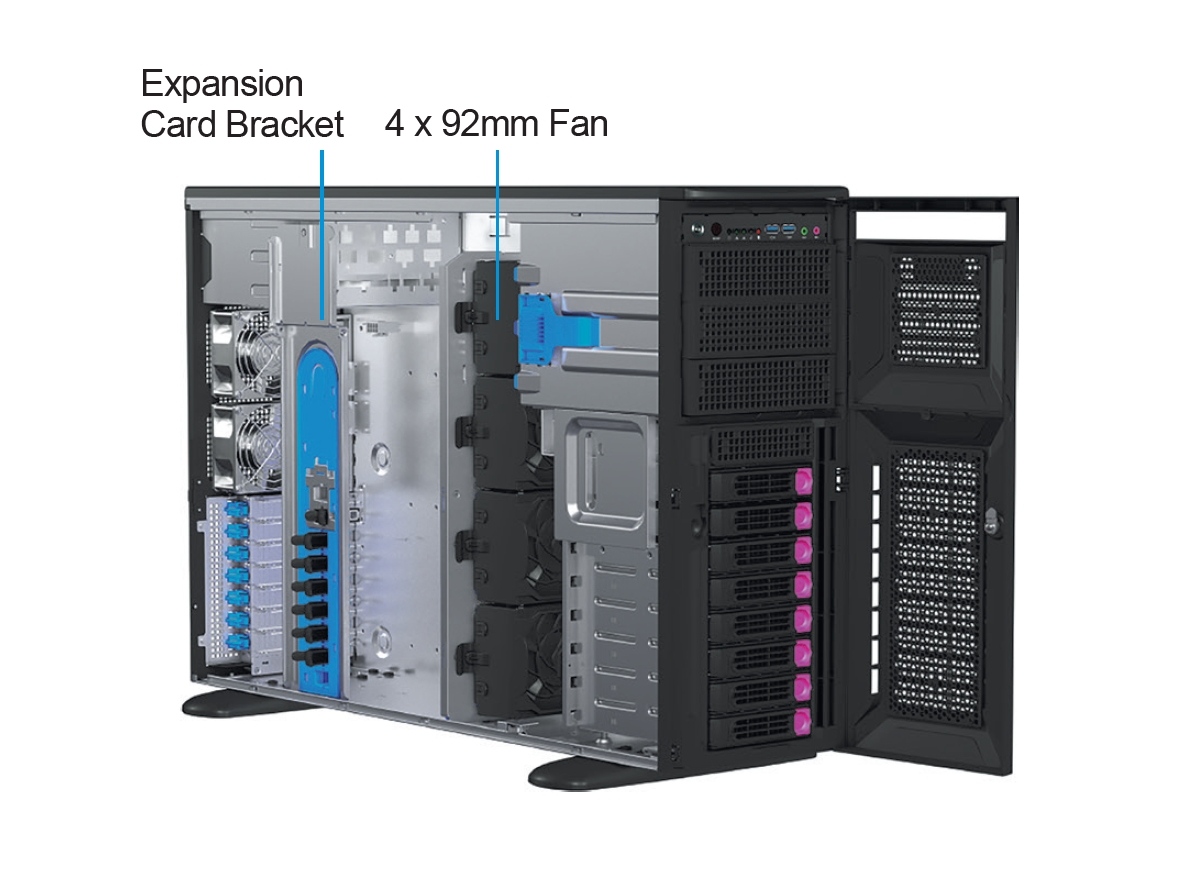

| System Cooling | 4 x 92mm Swappable PWM Fans (Middle)
2 x 80mm Swappable PWM Fans (Rear) 1 x 80mm Swappable PWM Fans (Outer: Optional) |
| Front Panel | Input / Output
2 x USB 3.0 USB 2.0 (Optional) Button 1 x Power Button 1 x Reset Button LED 1 x Power LED 1 x HDD Activity LED 2 x Network LEDs 1 x Overheat LED 1 x System Fail LED |
| Physical Secure | Intrusion Switch, Front Door Key Lock |
| Power Supply | ATX PS/2: L200 x W150 x H86mm (Optional) |
| Environment | Operating Temperature: 5° ~ 35°C (41° ~ 95°F)
Storage Temperature: -40° ~ 70°C (-40° ~ 158°F) Operating Humidity: 8% ~ 90% RH (non-condensing) Storage Humidity: 5% ~ 95% RH (non-condensing) |
| Category | Model No. | Description |
| HDD Tray | AC-H204 | 3.5” to 2.5” HDD Converter Tray |
| HDD Tray | AC-H305 | 3.5” HDD Tray with Easy Lock (Black button) |
| HDD Tray | AC-H306 | 3.5” HDD Tray with Easy Lock (Purple button) |
| Backplane | AC-B430 | 8-port 12Gbps SAS/SATA to 2-port Mini-SAS HD with SGPIO |
| Power Supply | AC-PS8501 | 850W PS/2 ATX PSU, 80PLUS Gold (Brand: Liteon) |
| Power Supply | AC-PS1K00 | 1000W ATX PS/2 PSU (Brand: Acbel) |
| Power Supply | AC-PS1K20 | 1200W ATX PS/2 PSU (Brand: Acbel) |
| Power Supply | AC-PS2K00 | 2000W ATX PS/2 PSU (Brand: Compuware) |
| Slide Rail | AC-R57 | 4U Slide Rail, Think Type, 26.5”~36.4” , Ball Bearing, quick- release |
| Slide Rail | AC-R58 | 2~4U Slide Rail, Think Type, 19”~26.6” , Ball Bearing, quick- release |
| Slide Rail | AC-R59 | 4~5U Slide Rail, 26.5~36.4”, Ball-Bearing, w/ ear handle |
| Heatsink | - | Please refer Heatsink Product for more option |
