ラックマウント
CS-R25

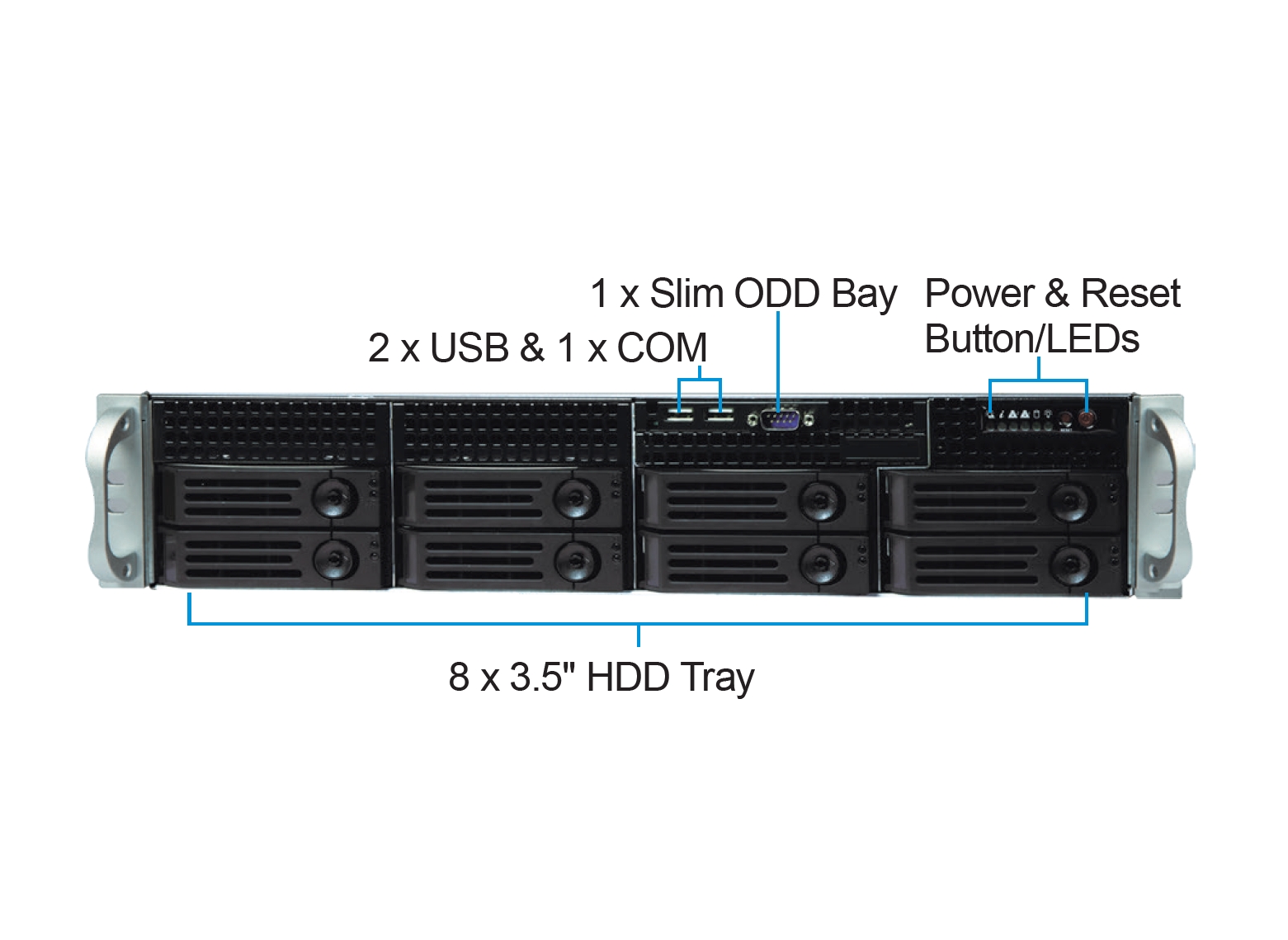

2U 8ベイ ラックマウント シャーシ
- 2U ラックマウント 21 インチ奥行きシャーシ
- ATXまでのマザーボードサイズをサポート
- 8 x 3.5インチ交換可能なHDDトレイ
- 2 x 3.5インチ内蔵HDDベイ
- 7 x ロープロファイル/フルレングスまたは
- フルハイト/フルレングス拡張スロット x 3
- 最大 4 x 8025mm PWM ファン
| Model | CS-R25 |
| M/B Form Factor | ATX, Micro-ATX, Mini-ITX |

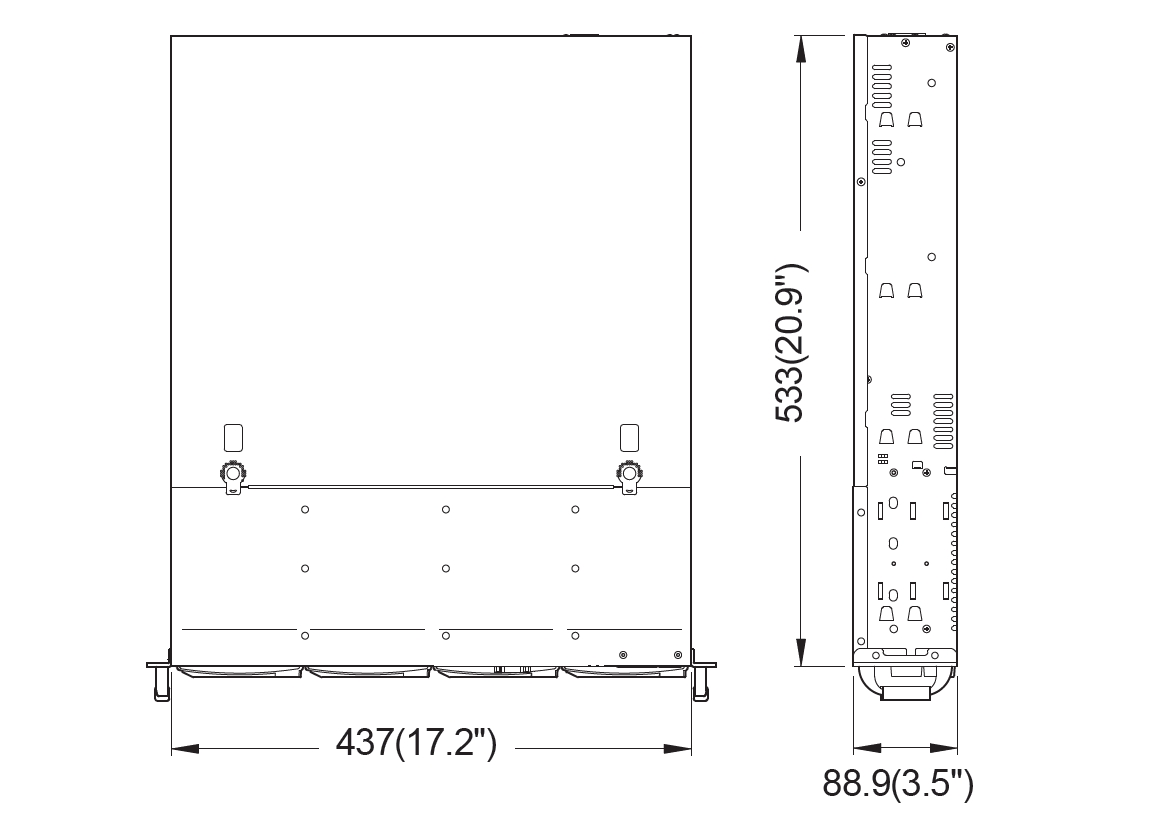

| Dimensions (W x D x H) | 437mm x 533mm x 89mm (17.2” x 21” x 3.5”) |
| Color | Black C (Front panel only) |
| Processor Support | Dual and Single Intel® and AMD processors |
| Drive Bay | 8 x 3.5” swappable HDD Trays
2 x 3.5" internal HDD Bays |
| Peripheral Bay | 1 x Slim ODD Bay |
| HDD Backplane | 8-port 6 Gbps SAS/ SATA to SAS
8-port 12Gbps SAS/ SATA to 2-port MiniSAS-HD with SGPIO (Optional) |
| Expansion Slot | 7 x Low-Profile/ Half-Length
3 x Full-High/ Full-Length (Optional) |
| System Cooling | Up to 4 x 8025mm PWM fan (Default 3pcs) |
| Front Panel | Input / Output
2 x USB 2.0 1 x COM Button 1 x Power Button 1 x Reset Button LED 1 x Power LED 1 x HDD Activity LED 2 x Network Activity LEDs 1 x Overheat LED 1 x Power Fail LED |
| Physical Secure | Chassis intrusion switch |
| Power Supply | 2U CRPS Power Supply: D265 x W77 x H84mm (Optional)
2U Single Power Supply: D240 x W100 x H70mm (Optional) |
| Environment | Operating Temperature: 10° ~ 35°C (50° ~ 95°F)
Storage Temperature: -40° ~ 70°C (-40° ~ 158°F) Operating Humidity: 5% ~ 90% RH (Non-condensing) Storage Humidity: 5% ~ 95% RH (Non-condensing) |
| Category | Model No. | Description |
| HDD Tray | AC-H31 | 3.5” HDD Tray with Easy Lock (Plastic) |
| HDD Tray | AC-H32 | 3.5” HDD Tray with Key Lock (Plastic) |
| HDD Tray | AC-H33 | 3.5” to 2.5” HDD Converter Tray with Easy Lock |
| HDD Tray | AC-H34 | 3.5” to 2.5” HDD Converter Tray with Key Lock |
| Bracket | AC-K200 | 3.5” to 2.5” HDD Tray Bracket |
| Bezel | AC-F200 | 2U Plastic Front Bezel with Key Lock, Black |
| Backplane | AC-B232 | 8-port 6Gbps SAS/SATA to SATA |
| Backplane | AC-B238 | 8-port 12Gbps SAS/SATA to Mini-SAS HD with SGPIO |
| PSU | AC-PR5500 | 550W 2U CRPS PSU, 80PLUS Gold (Brand: Acbel) |
| PSU | AC-PR8000 | 800W 2U CRPS PSU, 80PLUS Platinum (Brand: Acbel) |
| PSU | AC-PR1K20 | 1200W 2U CRPS PSU with PDB & BKT (Brand: Acbel) |
| PSU | AC-PR6500 | 650W 2U Redundant PSU, 80PLUS Gold (Brand: Acbel) |
| PSU | AC-PS5501 | 550W 2U Single PSU, 80PLUS Bronze (Brand: Acbel) |
| PSU | AC-PS5500 | 550W 2U Single PSU, 80PLUS Bronze (Brand: Acbel) |
| PSU | AC-PS6500 | 650W 2U Single PSU, 80PUS Bronze (Brand: Acbel) |
| Slide Rail | AC-R50 | 2U Slide Rail, Thin Type, 19”~26.6”, Ball Bearing, Toolless |
| Slide Rail | AC-R55 | 2U Slide Rail, Thin Type, 26.5”~36.4”, Ball Bearing, Toolless |
| Slide Rail | AC-R53 | 2U Slide Rail, Thin Type, 26.5”~36.4”, Ball Bearing, Toolless, w/ Square to Round Hole converter |
| Heatsink | - | Please Refer Heatsink Product List For More Option |
