ラックマウント
CS-R19
1U ラックマウントシャーシ
- E-ATXまでのマザーボードサイズをサポート

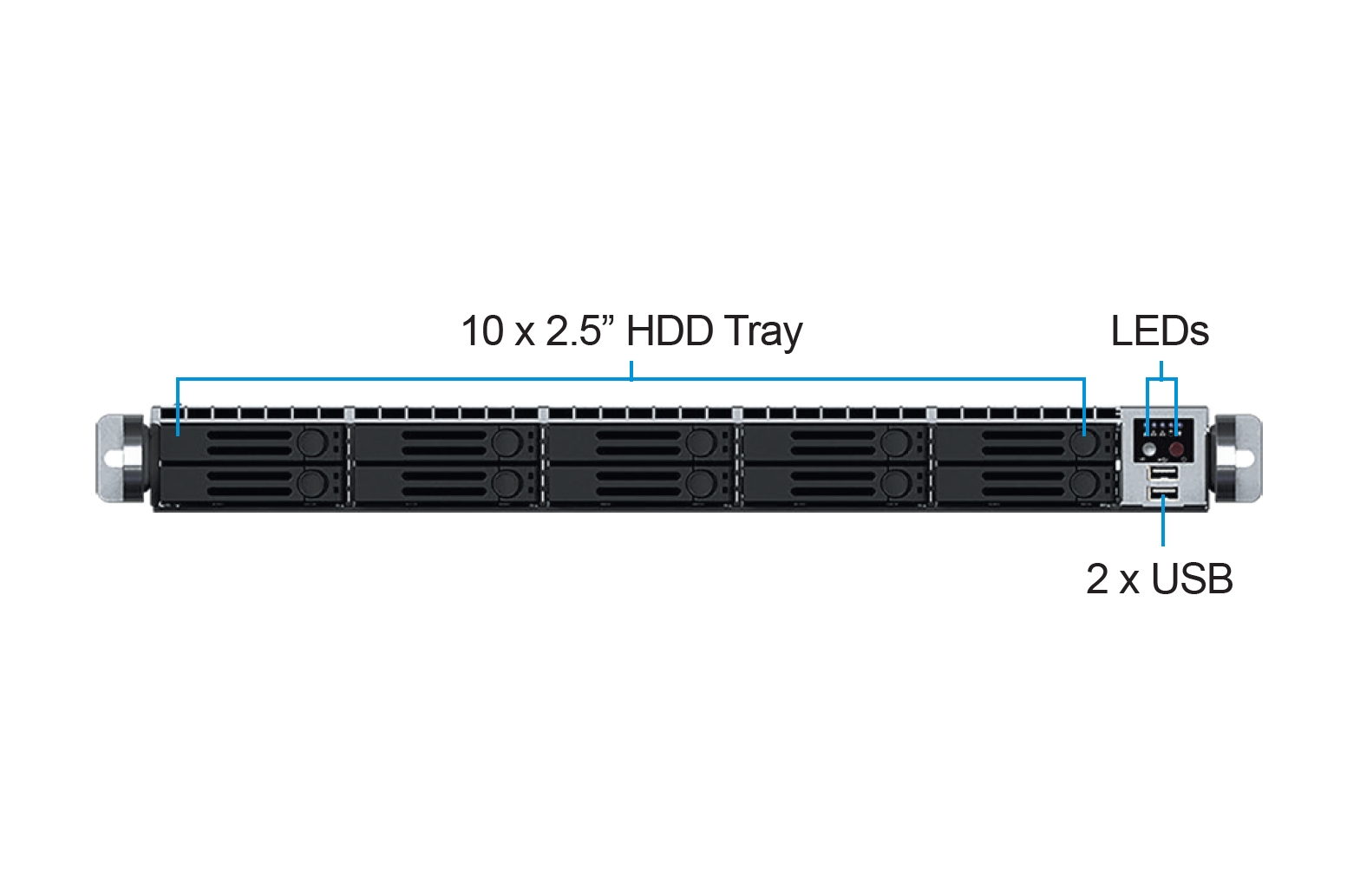

- NVMe/SASハイブリッドバックプレーンを備えた10 x 2.5インチ交換可能HDDトレイ
- USB 2.0 x 2
- ライザーカード経由のフルハイト/ハーフレングス拡張スロット x 1
| Model | CS-R19 |
| M/B Form Factor | E-ATX, ATX, Micro-ATX, Mini-ITX |

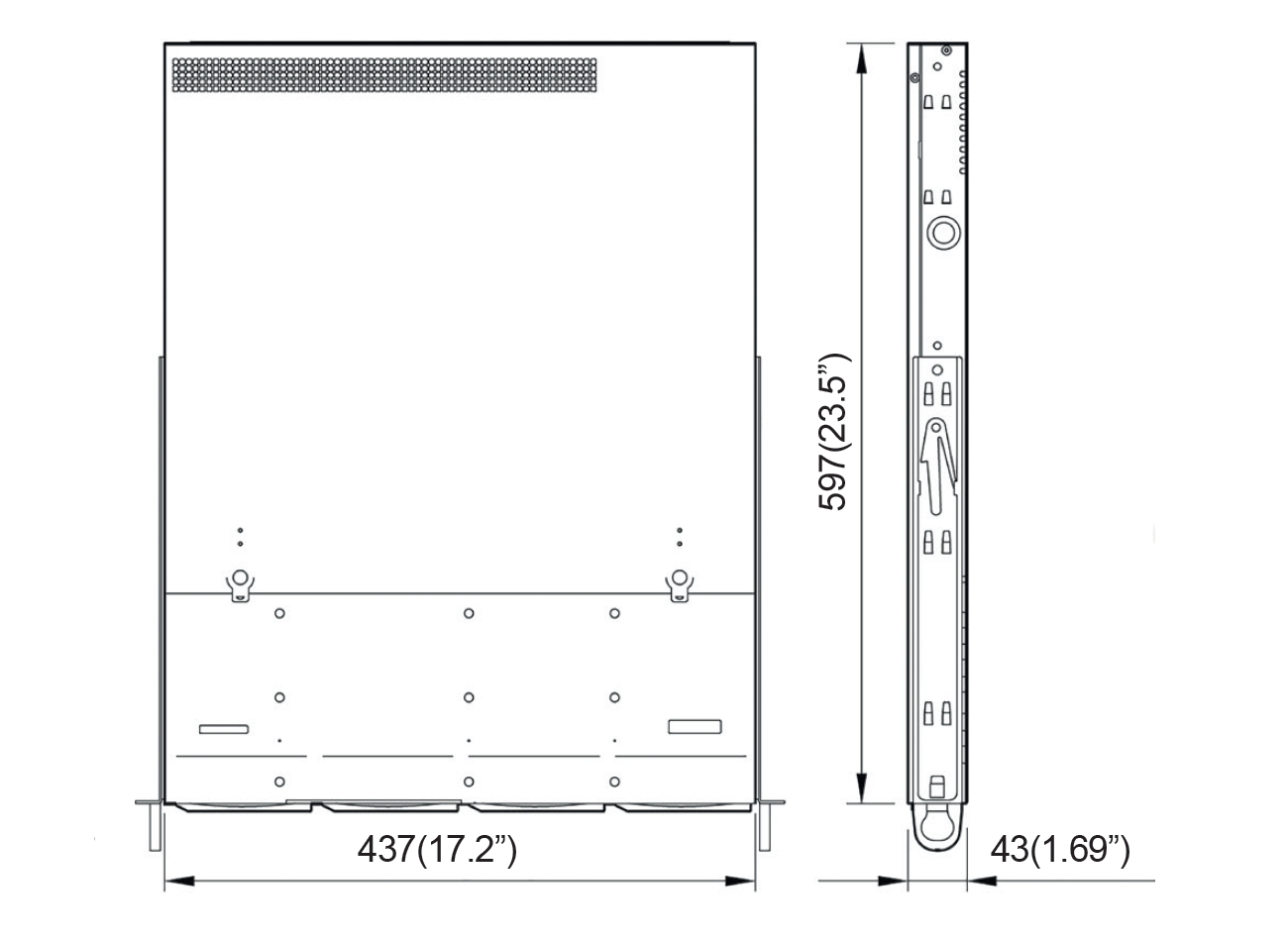

| Dimensions (W x D x H) | 437 x 597 x 43mm (17.2” x 23.5” x 1.7”) |
| Color | Black C (Front Panel Only) |
| Processor Support | Dual and Single Intel® and AMD processors |
| Drive Bay | 10 x 2.5” Swappable HDD Trays |
| Peripheral Bay | - |
| HDD Backplane | 10-port NVMe Hybrid Backplane
10-port MCIO to motherboard |
| Expansion Slot | 1 x Full-Height/ Full-Length Via Riser Card |

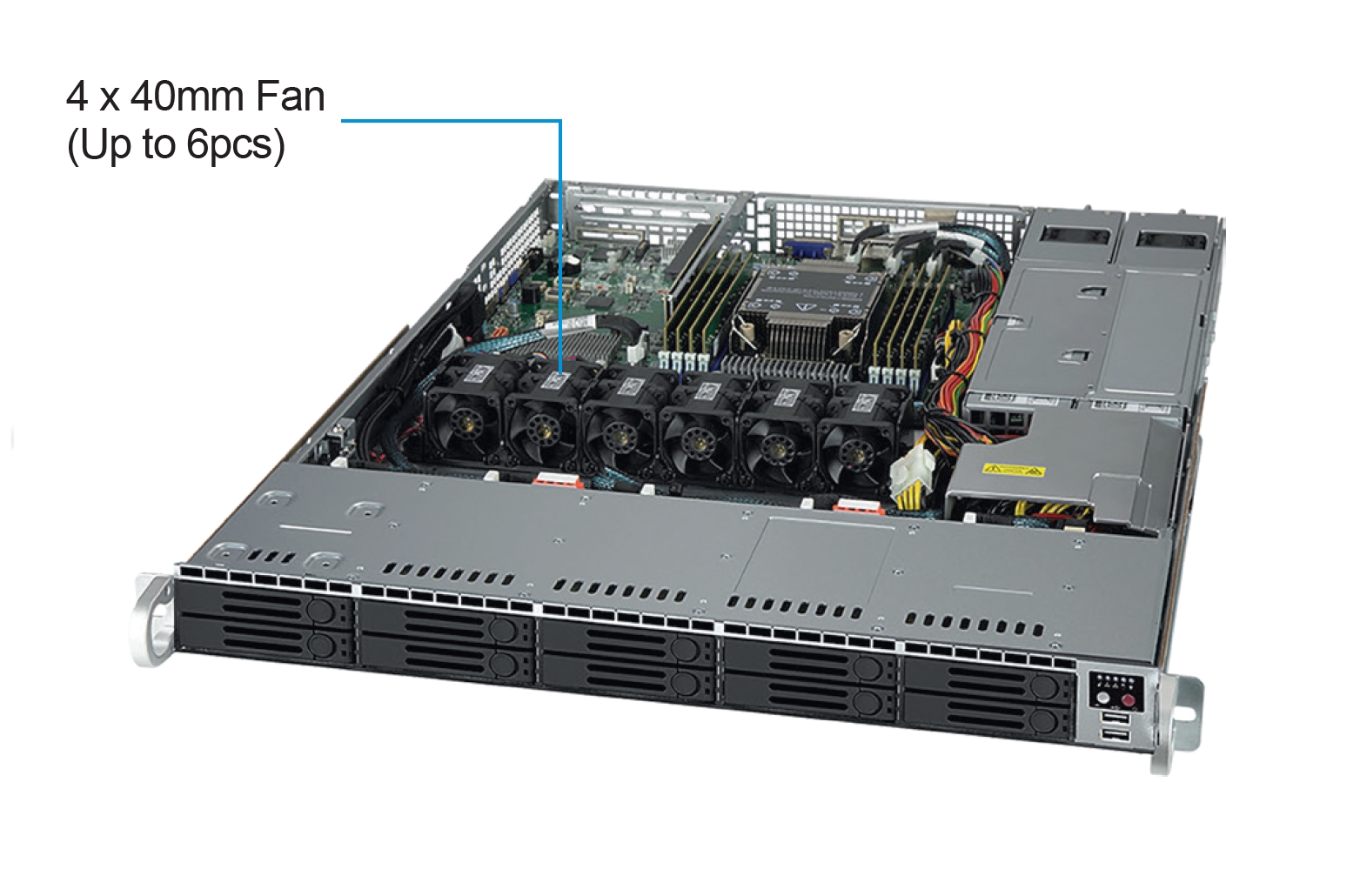

| System Cooling | Up to 6 Fans x 40mm PWM Fan (Default 4pcs) |
| Front Panel | Input / Output
2 x USB 3.0 1 x COM Button 1 x Power Button 1 x Reset Button LED 1 x Power LED 1 x HDD Activity LED 2 x Network Activity LEDs 1 x UID LED |
| Physical Secure | Chassis Intrusion switch |

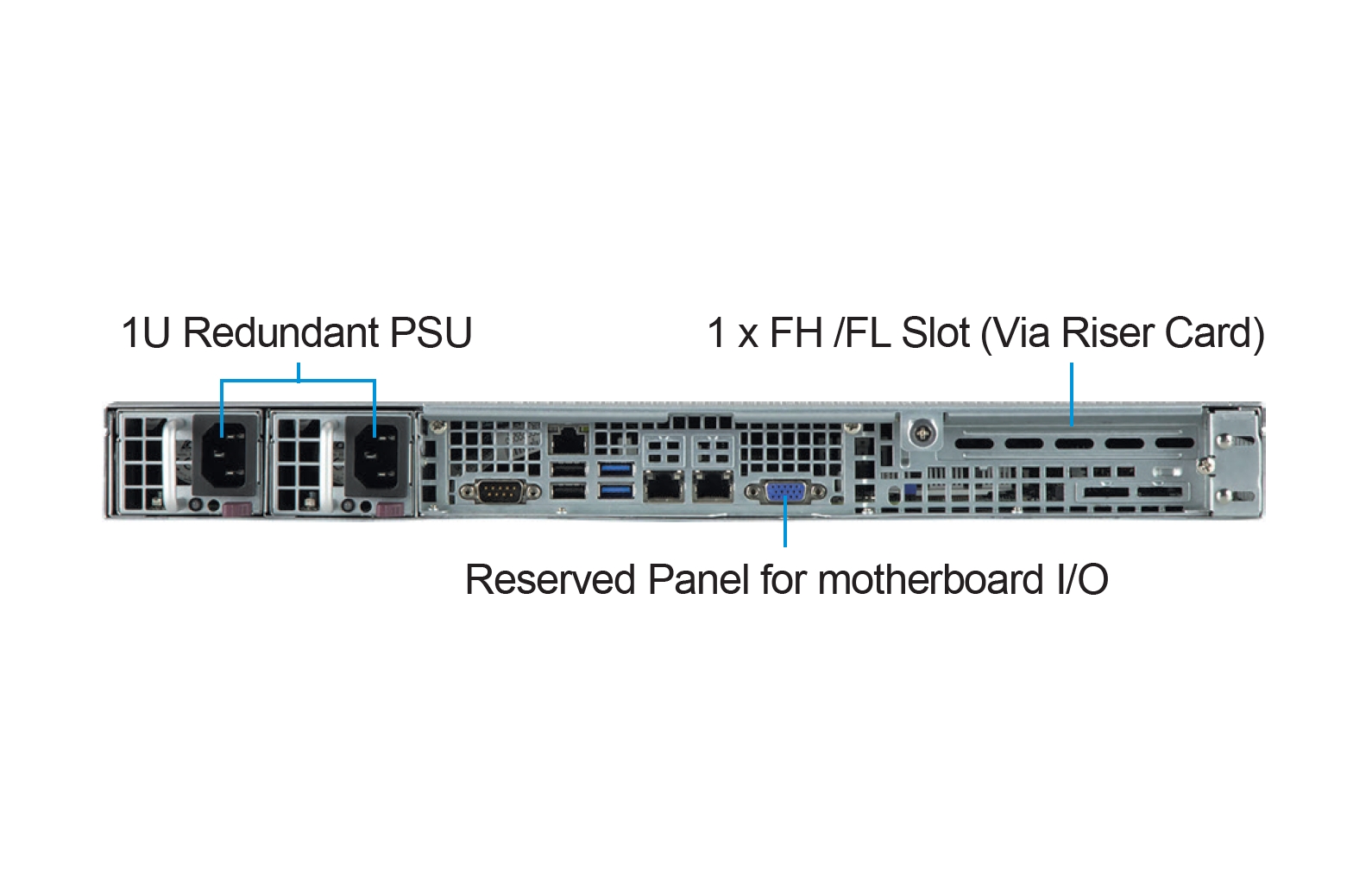

| Power Supply | 1U Redundant PSU: D322 x W55 x H40mm (Optional) |
| Environment | Operating Temperature: 5° ~ 35°C (41° ~ 95°F)
Storage Temperature: -40° ~ 70°C (-40° ~ 158°F) Operating Humidity: 8% ~ 90% RH (Non-condensing) Storage Humidity: 5% ~ 95% RH (Non-condensing) |
| Category | Model No. | Description |
| HDD Tray | AC-H200 | 2.5" HDD Tray |
| HDD Tray | AC-H201 | 2.5" Tool-Less HDD Tray |
| PSU | AC-PR6001 | 600W 1U Redundant PSU with PDB&BKT (Brand: 3Y) |
| PSU | AC-PR6000 | 600W 1U Redundant PSU with PDB&BKT (Brand: 3Y) |
| Slide Rail | AC-R102 | 1U Slide Rail, Thin Type, 26.5"~33.05", Linear, Toolless |
| Slide Rail | AC-R56 | 1U Slide Rail, Thin Type, 19"~26.4", Linear, Toolless |
| Heatsink | - | Please Refer Heatsink Product List For More Option |
