エンベデッド
CS-E01D
1.5U Mini-ITX 組み込みシャーシ
- ミニ組み込みシャーシ
- Mini-ITXマザーボードをサポート
- 2 x 2.5インチ内蔵HDDベイ
- VESA壁掛けブラケットをサポート
| Model | CS-E01D |
| M/B Form Factor | Mini-ITX |

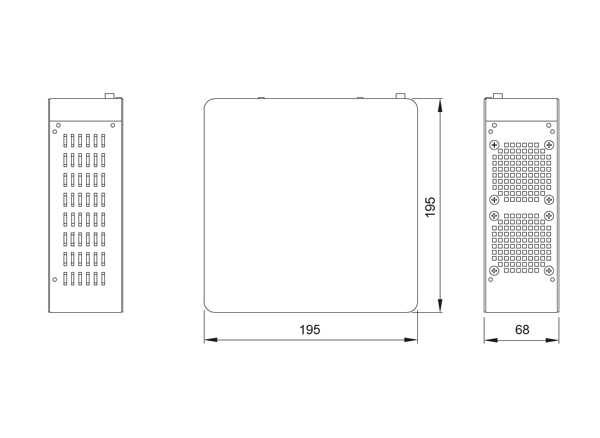

| Dimensions (W x D x H) | 195 x 195 x 68mm (7.68” x 7.68” x 2.68”) |
| Color | Black |
| Processor Support | Dual and Single Intel® and AMD processors (TDP < 65W) |
| Drive Bay | 1 x 2.5” internal HDD bays |
| Peripheral Bay | 1 x Slim ODD Bay |
| HDD Backplane | N/A |
| Expansion Slot | Reserve customized rear I/O window for 1 x Low Profile |
| System Cooling | 1 x 60mm PWM Fan (Slide) |

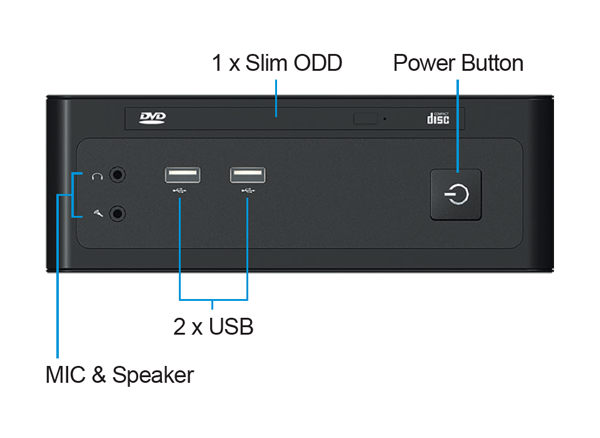

| Front Panel | Input / Output
2 x USB 2.0 2 x Audio Button 1 x Power Button LED 1 x Power LED |

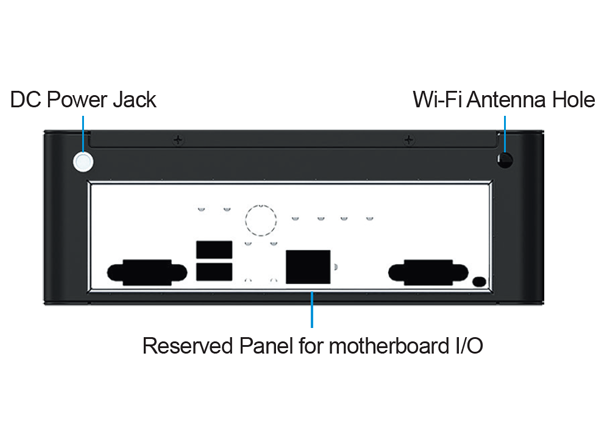

| Back Panel | 1 x DC Jack
1 x Reserved Wifi Antenna Hole 1 x Standard size I/O Sheild |
| Physical Secure | N/A |
| Power Supply | DC12V External Adaptor (Option)
DC/ATX Power Converter Board (Option) |
| Environment | Operating Temperature: 10° ~ 40°C (50° ~ 104°F)
Storage Temperature: -40° ~ 80°C (-40° ~ 176°F) Operating Humidity: 5% ~ 85% RH (non-condensing) Storage Humidity: 5% ~ 95% RH (non-condensing) |
| Model | CS-E01D |
| M/B Form Factor | Mini-ITX |
| Dimensions (W x D x H) | 195 x 195 x 68mm (7.68” x 7.68” x 2.68”) |
| Color | Black |
| Processor Support | Dual and Single Intel® and AMD processors (TDP < 65W) |
| Drive Bay | 1 x 2.5” internal HDD bays |
| Peripheral Bay | 1 x Slim ODD Bay |
| HDD Backplane | N/A |
| Expansion Slot | Reserve customized rear I/O window for 1 x Low Profile |
| System Cooling | 1 x 60mm PWM Fan (Slide) |
| Front Panel | Input / Output
2 x USB 2.0 2 x Audio Button 1 x Power Button LED 1 x Power LED |
| Back Panel | 1 x DC Jack
1 x Reserved Wifi Antenna Hole 1 x Standard size I/O Sheild |
| Physical Secure | N/A |
| Power Supply | DC12V External Adaptor (Option)
DC/ATX Power Converter Board (Option) |
| Environment | Operating Temperature: 10° ~ 40°C (50° ~ 104°F)
Storage Temperature: -40° ~ 80°C (-40° ~ 176°F) Operating Humidity: 5% ~ 85% RH (non-condensing) Storage Humidity: 5% ~ 95% RH (non-condensing) |
