CS-914
1U Flex-ATX 組み込みシャーシ
- ミニ組み込みシャーシ
- Flex-ATXマザーボードをサポート
- 3 x 2.5インチ内蔵HDDブラケット
- ロープロファイル/ハーフレングス拡張スロット x 1
- 12V電源アダプターをサポート
- VESA壁掛けブラケットをサポート
| Model | CS-914 |
| M/B Form Factor | Flex-ATX, Mini-ITX |
| Dimensions (W x D x H) | 265 x 225 x 43mm (10.43” x 8.86” x 1.7”) |
| Color | Black C |
| Processor Support | Dual and Single Intel® and AMD processors (TDP < 65W) |
| Drive Bay | Up to 3 x 2.5” Internal HDD Bracket (Depends on MB Type) |
| Peripheral Bay | N/A |
| HDD Backplane | N/A |
| Expansion Slot | 1 x Low-Profile/ Half-Length via Riser Card |

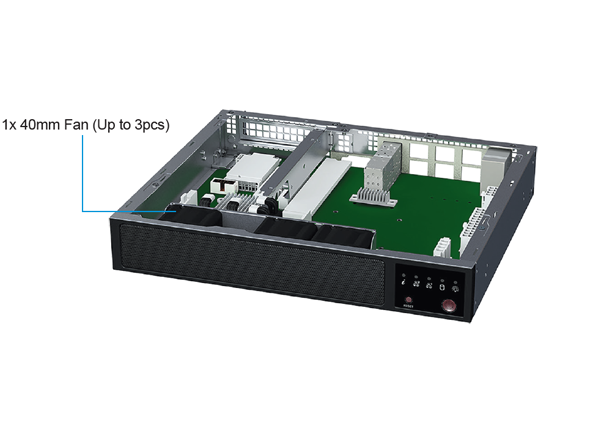

| System Cooling | Up to 3 x 4028mm PWM fan (Default 1pcs) |

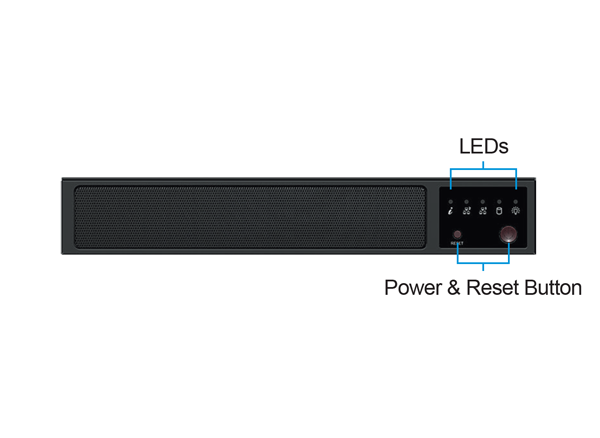

| Front Panel | Button
1 x Power Button 1 x Reset Button LED 1 x Power LED 1 x HDD Activity LED 2 x Network LEDs 1 x Overheat LED |

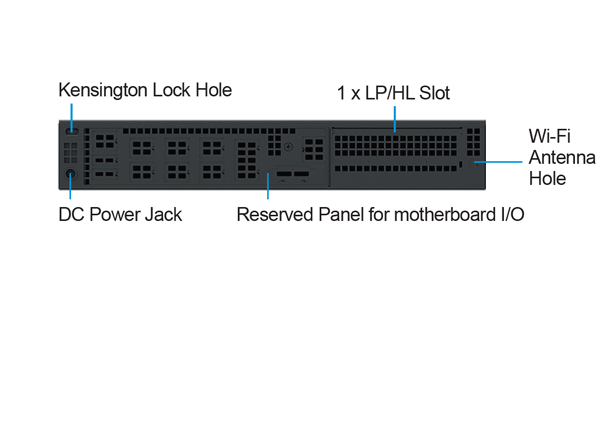

| Back Panel | 1 x DC Jack
1 x Reserved Wifi Antenna Hole I/O Depends on Motherboard Specification |
| Physical Secure | Kensington Security Lock Hole |
| Power Supply | 12V Power Adapter(optional) |
| Environment | Operating Temperature: 10° ~ 40°C (50° ~ 104°F)
Storage Temperature: -40° ~ 80°C (-40° ~ 176°F) Operating Humidity: 5% ~ 85% RH (Non-Condensing) Storage Humidity: 5% ~ 95% RH (Non-Condensing) |
| Category | Model No. | Description |
| Bracket | AC-K100 | VESA Wall-Mount Bracket |
| Bracket | AC-K101 | Wall-mount bracket (L Type) |
| Power Supply | AC-A120 | 120W 12V Power Adapter |
| Power Supply | AC-A800 | 84W 12V Power Adapter (US Power Cord) |
