エンベデッド
CS-913
1U Mini-ITX 組み込みシャーシ
- ミニ組み込みシャーシ
- Mini-ITXマザーボードをサポート
- 2.5インチ内蔵HDDブラケット x 1
- 60W 12V電源アダプターをサポート
- VESA壁掛けブラケットをサポート
| Model | CS-913 |
| M/B Form Factor | Mini-ITX |

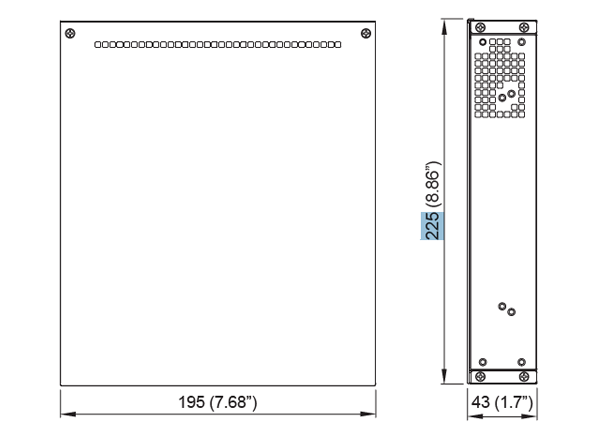

| Dimensions (W x D x H) | 225 x 195 x 43mm (7.7” x 8.9” x 1.7”) |
| Color | Black C |
| Processor Support | Dual and Single Intel® and AMD processors (TDP < 65W) |
| Drive Bay | 1 x 2.5” internal HDD bracket |
| Peripheral Bay | N/A |
| HDD Backplane | N/A |
| Expansion Slot | N/A |
| System Cooling | Up to 3 x 40mm PWM Fan (Default 1pcs) |

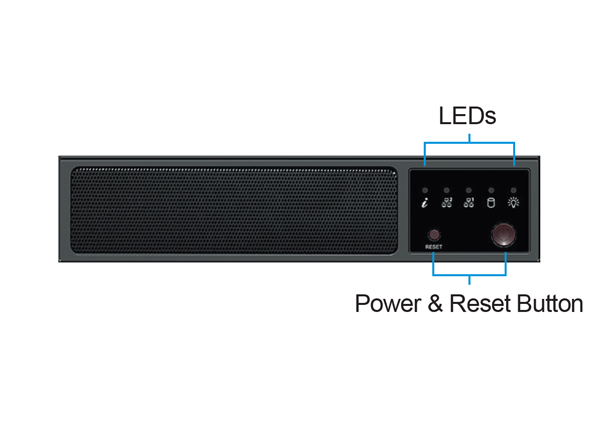

| Front Panel | Button
1 x Power Button 1 x Reset Button LED 1 x Power LED 1 x HDD Activity LED 2 x Network LEDs 1 x Overheat LED |

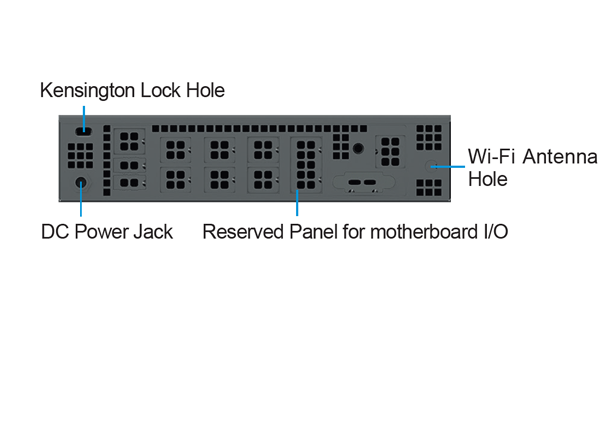

| Back Panel | 1 x DC Jack
1 x Reserved Wifi Antenna Hole 1 x Reserved Panel for motherboard I/O |
| Physical Secure | Kensington Security Lock |
| Power Supply | 60W/12V External Adaptor (Optional) |
| Environment | Operating Temperature: 10° ~ 40°C (50° ~ 104°F)
Storage Temperature: -40° ~ 80°C (-40° ~ 176°F) Operating Humidity: 5% ~ 85% RH (non-condensing) Storage Humidity: 5% ~ 95% RH (non-condensing) |
| Category | Model No. | Description |
| Bracket | AC-K100 | VESA Wall-Mount Bracket |
| Power | AC-A120 | 120W 12V Power Adapter |
| Adaptor | AC-A800 | 84W 12V Power Adapter (US Power Cord) |
| Heatsink | - | Please refer 1U heatsink product line for more option |
