エンベデッド
CS-20B
1U Mini-ITX 組み込みシャーシ
- Mini-ITXマザーボードをサポート
- 2.5インチ内蔵ドライブベイ x 1
- 最大 2 x 40mm ファン
- 1 x 予約済み Wi-Fi アンテナ穴
- I/Oはマザーボードの仕様によって異なります
- DCジャック×1
- VESA壁掛けブラケット
| Model | CS-20B |
| M/B Form Factor | Mini-ITX |

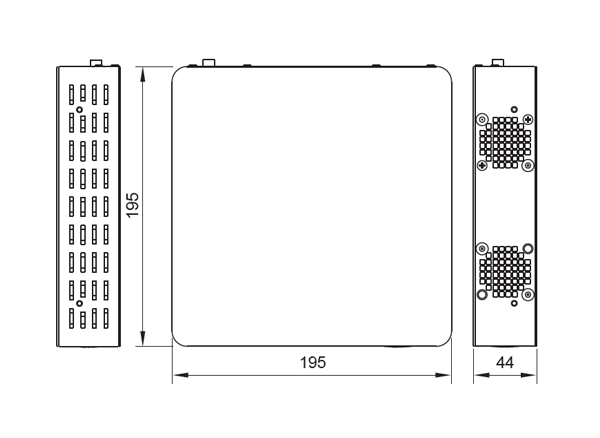

| Dimensions (W x D x H) | 195 x 195 x 44mm (7.68” x 7.68” x 1.73”) |
| Color | Black C |
| Processor Support | Dual and Single Intel® and AMD processorss (TDP < 25W) |
| Drive Bay | 1 x 2.5” Internal Drive Bay |
| Peripheral Bay | N/A |
| HDD Backplane | N/A |
| Expansion Slot | N/A |
| System Cooling | Up to 2 x 40mm Fan (Default 1pcs) |

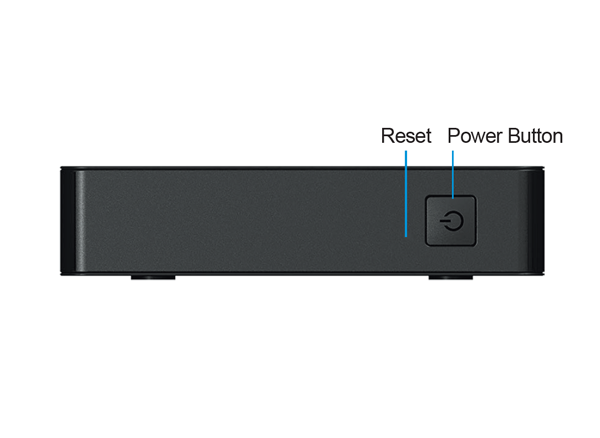

| Front Panel | Button
1 x Power Button 1 x Reset Button LED 1 x Power LED |

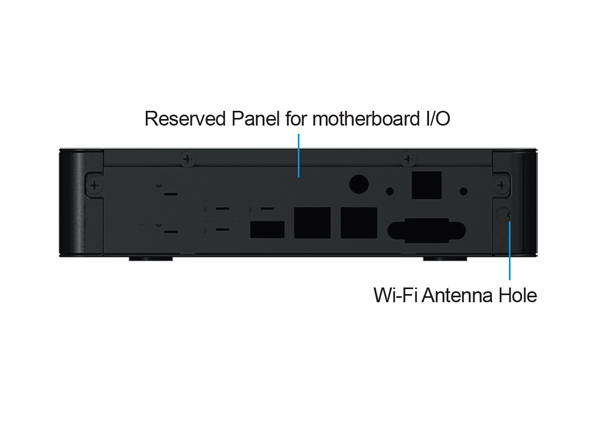

| Back Panel | 1 x Reserved Wifi Antenna Hole
I/O Depends on Motherboard Specification 1 x DC Jack |
| Physical Secure | N/A |
| Power Supply | 12V Power Adapter (Optional) |
| Environment | Operating Temperature: 10° ~ 40°C (50° ~ 104°F)
Storage Temperature: -40° ~ 70°C (-40° ~ 158°F) Operating Humidity: 5% ~ 90% RH (Non-Condensing) Storage Humidity: 5% ~ 95% RH (Non-Condensing) |
| Category | Model No. | Description |
| Bracket | AC-K100 | VESA Wall-Mount Bracket |
| Power Adaptor | AC-A120 | 120W 12V Power Adapter |
| Power Adaptor | AC-A800 | 84W 12V Power Adapter (US Power Cord) |
| Heatsink | - | Please Refer 1U Heatsink Product List For More Option |
