CS-E01

1.5U Mini-ITX Embedded Chassis

  • Mini embedded chassis
  • Supports Mini-ITX motherboard
  • 2 x 2.5” internal HDD Bay
  • Supports VESA wall-mount bracket
ModelCS-E01
M/B Form FactorMini-ITX
Dimensions (W x D x H)195 x 195 x 68mm (7.7” x 7.7” x 1.7”)
ColorBlack
Processor SupportDual and Single Intel® and AMD processors (TDP < 65W)
Drive Bay2 x 2.5” internal HDD bays
Peripheral BayN/A
HDD BackplaneN/A
Expansion SlotReserve customized rear I/O window for 1 x Low Profile
System Cooling1 x 60mm PWM Fan (Slide)
Front PanelInput / Output
2 x USB 2.0
2 x Audio
Button
1 x Power Button
LED
1 x Power LED

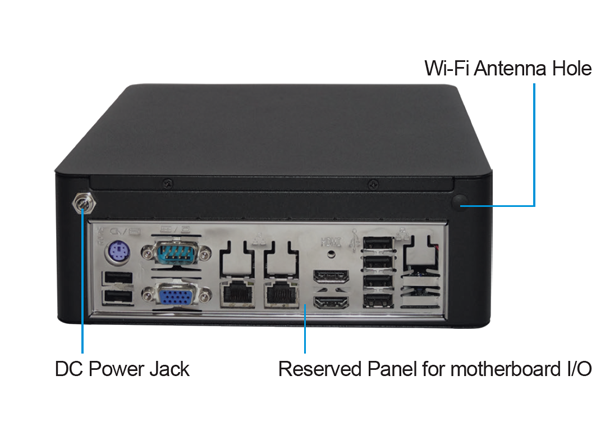

Back Panel1 x DC Jack
1 x Reserved Wifi Antenna Hole
1 x Standard size I/O Sheild
Physical SecureN/A
Power SupplyDC12V External Adaptor (Option)
DC/ATX Power Converter Board (Option)
EnvironmentOperating Temperature: 10° ~ 40°C (50° ~ 104°F)
Storage Temperature: -40° ~ 80°C (-40° ~ 176°F)
Operating Humidity: 5% ~ 85% RH (non-condensing)
Storage Humidity: 5% ~ 95% RH (non-condensing)
CategoryModel No.Description
BracketAC-K100VESA Wall-Mount Bracket
Power AdaptorAC-A120120W 12V Power Adapter
Power AdaptorAC-A121120W DC/ATX Power Converter Board
Power AdaptorAC-A80084W 12V Power Adapter (US Power Cord)
Heatsink-Please Check Heatsink Product List for More Optional
